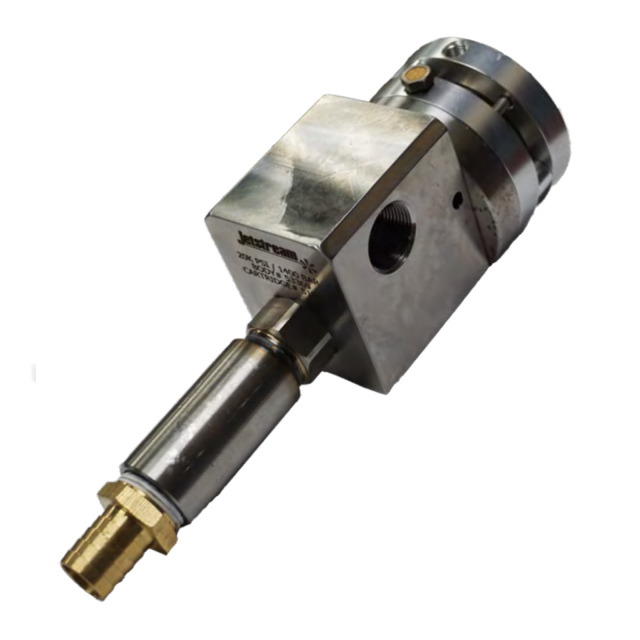

Air-Operated Dump-Style Diverter Valve

Name: Air-Operated Dump-Style Diverter Valve
Brand: China Best Hydroblasting Cleaning Machine Manufacturer | Water Jet Cle
Availability: InStock
Rating: 5 (1 reviews)

The Air-Operated Diverter Valve allows an operator to remotely control pressure in 20,000 psi cleaning applications, specially in automated cleaning processes. Reduces operator fatigue by actuating the system pneumatically rather than mechanically.

GET A QUOTE

Description

Assembly Part No	Mounting Style	Connection Type		Max Flow Rate	Max Operating Pressure		Inlet Air Pressure
		Inlet	Outlet	GPM	PSI	BAR	PSI	BAR	PSI	BAR
53445	Pump	20K Port Female		30-35	20000	1379	70	4.8	125	9.6
63631	Base
J55780	Pump	3/4" MP Female		50	20000	1379	70	4.8	125	8.6
57292	Base
62281	Pump	1" MP Female		80	22000	1516	70	4.8	125	8.6

When air is sent to the cylinder, the valve closes and allows the system to build pressure. The valve opens when the air is exhausted, reducing system pressure to near atmospheric.
• Quick cartridge overhaul for easy field maintenance
• Remote operation for added operator convenience and safety
• Pneumatic operation for reduced operator fatigue
